M Series - High Flow Filter Housings
M Series - High Flow Filter Housings are designed to accommodate Darlly’s HF series High Flow filter cartridges intended for use primarily for higher fluid flow applications, especially in water treatment.
MAKE AN ORDER
Download catalog
description
specifications
Scope of application
features and quality
M Series - High Flow Filter Housings are designed to accommodate Darlly’s HF series High Flow filter cartridges intended for use primarily for higher fluid flow applications, especially in water treatment. Housings are available in a range of sizes accommodating from 1 to 10 filter elements in lengths of 40” and 60”. Constructed of high quality 304 or 316L stainless steel suitable for use in high temperatures, with tolerance to acids, alkalis, and organic chemicals. The horizontal option facilitates ease of operation while the vertical option minimizes the system's footprint. Customized configurations are available to suit customers’ specific needs.
Основные преимущества:
- Housings are manufactured with crevice-free internals, allowing a fine micro-polished internal surface finish option of Ra＜0.6μm. Preferable for potable water and food/beverage production.
- Vertical and horizontal configuration options give users flexibility and can be customized to meet special requirements.
|
Manufacturer |
Darlly |
|
|
Surface Finish |
||
|
Finish Process Options: |
Passivated Electropolished Mech. Polished
Sand blasted |
|
|
Polish Quality: |
Internal: Ra ≤ 0.6μm
External: Ra ≤ 0.8μm |
|
|
Material |
||
|
Shell Options: |
304 or 316L Stainless Steel |
|
|
Vent Valve: |
304, 316L |
|
|
Eyebolts: |
304 |
|
|
Legs: |
304 |
|
|
Seal Material Options: |
Silicone, EPDM, FKM |
|
|
Operating Conditions |
||
|
Max. Operating Temperature: |
150℃(302°F) |
|
|
Design Pressure: |
1.0MPa (150psi) |
|
|
Connection |
|
|
|
Shell Connection: |
Swing bolt closure |
|
|
Inlet, Outlet: |
Tri-clamp / Flange |
|
|
Drain Port: |
G 1/4" |
|

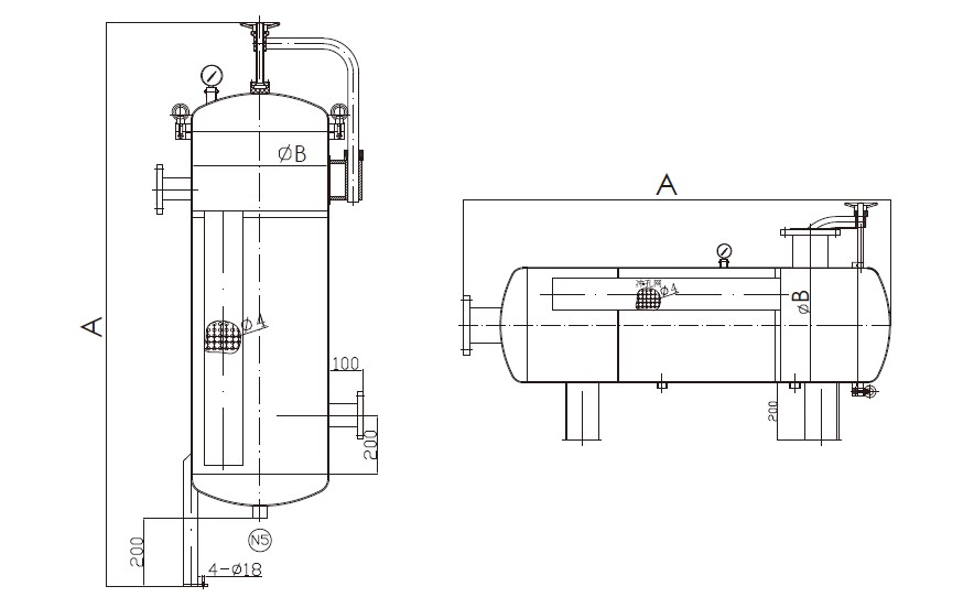

Dimensions (mm)
|
Model |
Nominal Cartridge |
B |
C |
|
|
Overall Length (excluding pressure gauge kit) |
Diameter |
|||
|
Single-Round |
Vertical |
1016 |
1950 |
219 |
|
1524 |
2450 |
219 |
||
|
Horizontal |
1016 |
2000 |
219 |
|
|
1524 |
2500 |
219 |
||
|
2-Round |
Vertical |
1016 |
1950 |
400 |
|
1524 |
2450 |
400 |
||
|
Horizontal |
1016 |
2000 |
400 |
|
|
1524 |
2500 |
400 |
||
|
3-Round |
Vertical |
1016 |
1950 |
450 |
|
1524 |
2450 |
450 |
||
|
Горизонтальный |
1016 |
2000 |
450 |
|
|
1524 |
2500 |
450 |
||
|
4-Round |
Vertical |
1016 |
1950 |
500 |
|
1524 |
2450 |
500 |
||
|
Horizontal |
1016 |
2000 |
500 |
|
|
1524 |
2500 |
500 |
||
|
5-Round |
Vertical |
1016 |
1950 |
550 |
|
1524 |
2450 |
550 |
||
|
Horizontal |
1016 |
2000 |
550 |
|
|
1524 |
2500 |
550 |
||
|
6-Round |
Vertical |
1016 |
1950 |
600 |
|
1524 |
2450 |
600 |
||
|
Horizontal |
1016 |
2000 |
600 |
|
|
1524 |
2500 |
600 |
||
|
8-Round |
Vertical |
1016 |
1950 |
700 |
|
1524 |
2450 |
700 |
||
|
Horizontal |
1016 |
2000 |
700 |
|
|
1524 |
2500 |
700 |
||
|
10-Round |
Vertical |
1016 |
1950 |
800 |
|
1524 |
2450 |
800 |
||
|
Horizontal |
1016 |
2000 |
800 |
|
|
1524 |
2500 |
800 |
||
